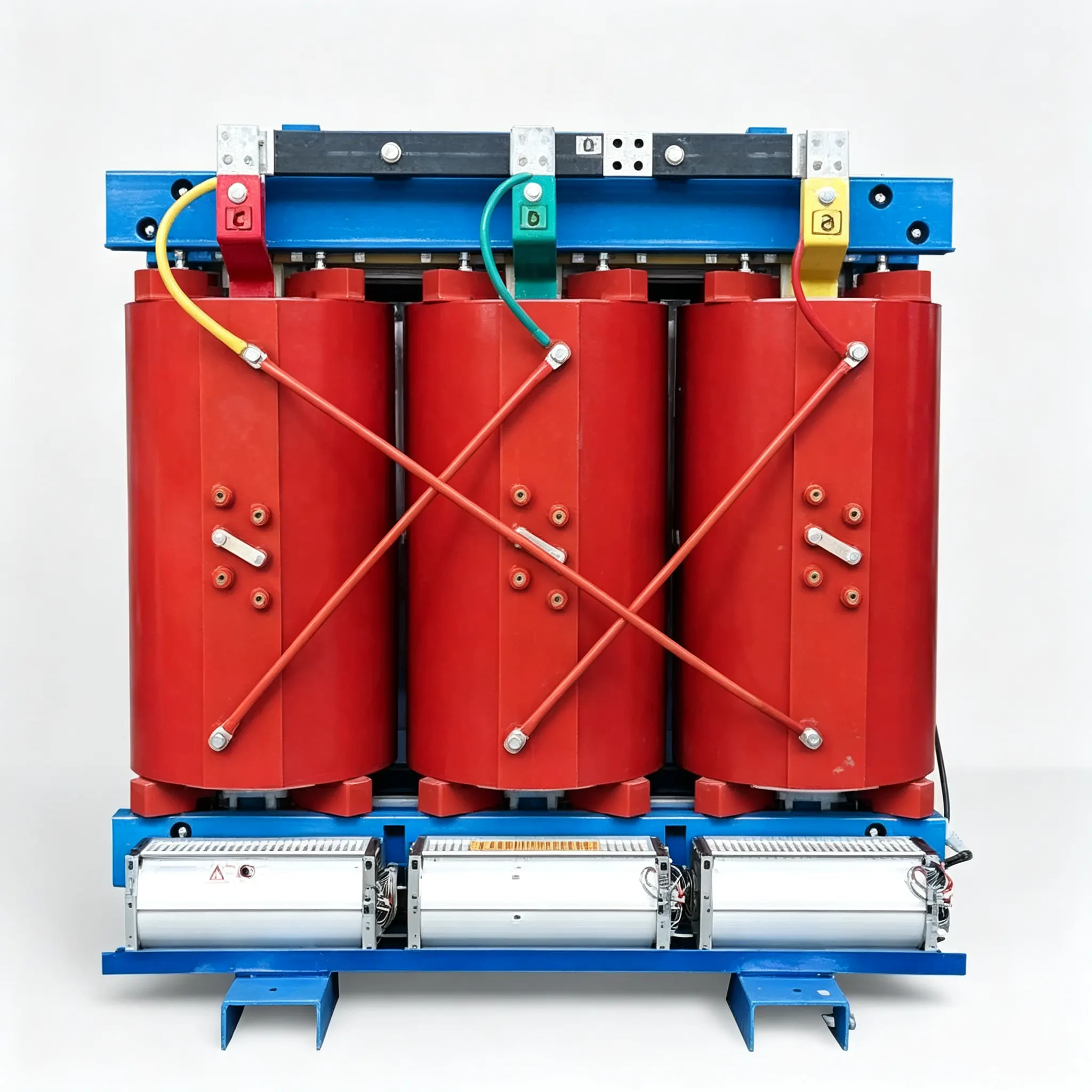

SC(B)10 Series Three Phase Resin-Cast Dry-Type Distribution Transformer
Pipe size：Ф 7-25mm
Pipe thickness：0.3～1.0mm
Warranty：2 year
Spare parts：Customized
Machine color：Customized
Application
Strong overload ability and low partial discharge quality,they are application to power transmission and distribution system,hotel,restaurant,commercial building,stadiums,chemical plants,stations,airports,offshore drilling platforms,especially to heavy load centers and places with special fire protection requirements.
Mainly Rating, Types & Capacity
Three phase,
Two windings or three windings
On-load or no-load voltage tapping changer
Natural cooling or force air
10-2500kVA
Service Condition
a) Suitable for indoor or outdoor application
b)Air temperature:
Maximum temperature: +40°C, Minimum temperature:-30°C
c) Humidity:
Monthly average humidity 95%; Daily average humidity 90% .
d) Altitude above sea level:
Maximum installation altitude: 2000m.
e)Max wind speed:35M/s.
f) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.
g) No frequent violent shake.
Note: * Beyond those services condition should enquiry to manufacturer technical dept during order
High Reliability Feature
-
Flame resistant
-
Explosion proof
-
Low temperature rise
-
Low loss & low noise
-
No environmental contamination
