Pad Mounted Transformer
Model Series：Pad Mounted
Rated Voltage ：2.5～34.5kV
Standard：IEEE C57.12.34
Warranty：Two years
Application：Outdoor/Indoor
General
The standard rating for these transformers ranges from 10 to 167 KVA for single phase, and 45 to 3000 KVA for three phase, with primary voltage ratings ranging from 2,400V to 34,500V. The design of these transformers adheres to the relevant standards set by ANSI/IEEE and NEMA.

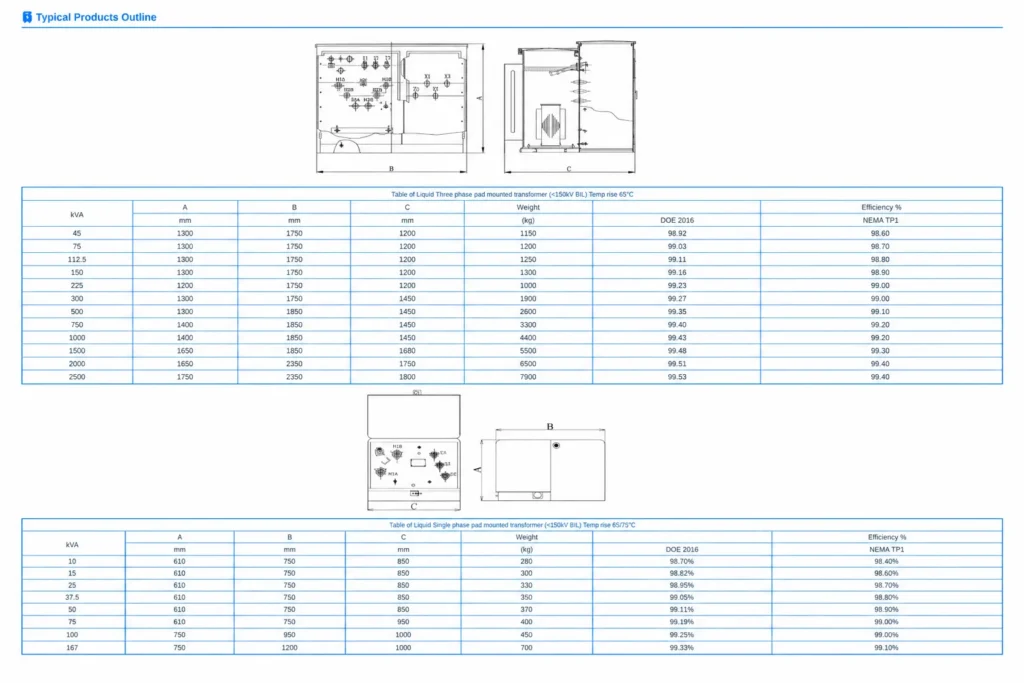

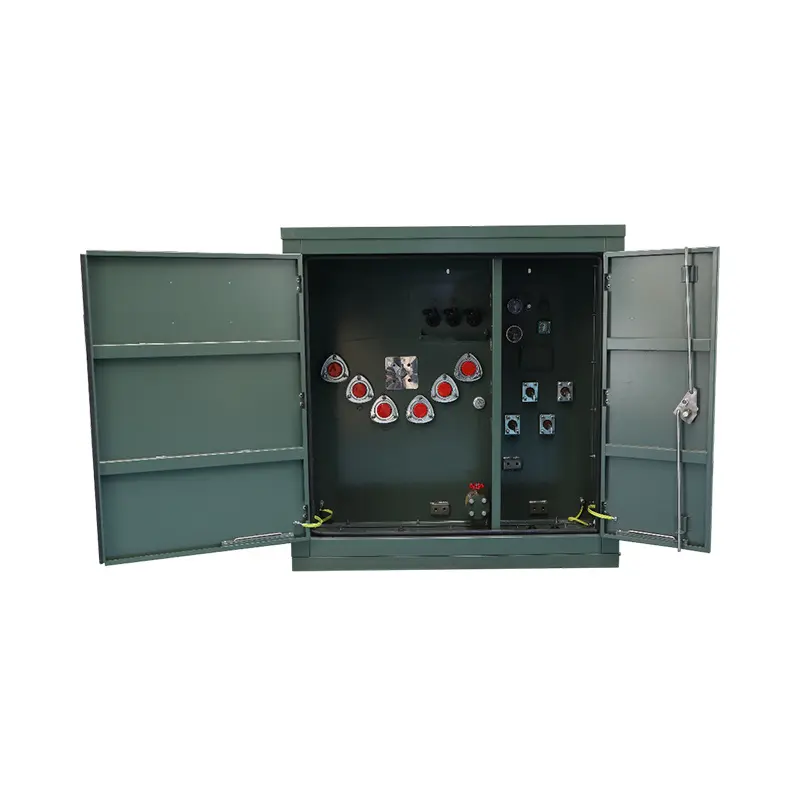

Product View And Features
-
ANSI/IEEE C57.12.34
-
Single or Three phase
-
DOE2016 or NEMA TP1 Efficiency
-
Indoor or outdoor
-
Wound core-coil construction
-
Robust steel tank and cabinet assembly
-
Dead or live front
-
3 points door locking
-
Standard NEMA accessories
-
All standard tap configurations
-
Dual voltage available
-
Corrosion tank protection
Quality Assurance
Quality assurance is an integral part of the process. All electrical testing is per IEEE standards.. Quality of processed parts and subassemblies are the responsibility of the production personnel. Regular quality inspections and spot checking are conducted to make sure that good and consistent quality is achieved and maintained.
Routine Tests
-
In-process Core Loss Test
-
Transformer Turns Ratio Test
-
Winding Resistance Test
-
Polarity and Phase Displacement Test
-
Insulation Power Factor Test
-
Liquid Insulation DBV Test
-
No Load Loss & Excitation Test
-
Impedance Voltage & Load Loss Test
-
Voltage Ratio Test
-
Applied Potential Test
-
Induced Potential Test
Type Tests
-
Temperature Rise Test
-
Basic Impulse Level (BIL)
